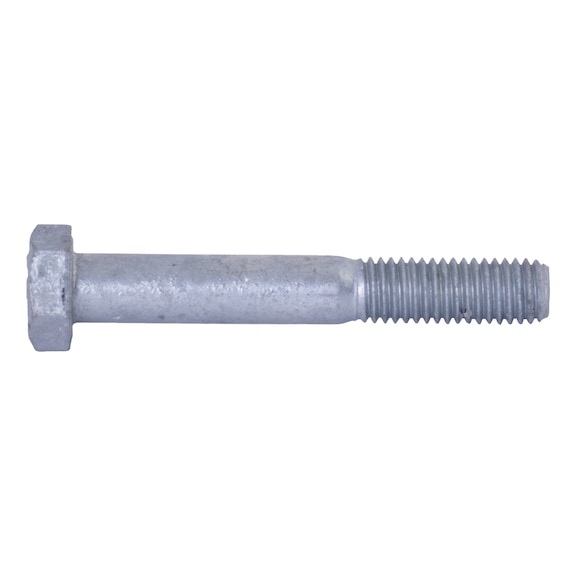

Hexagon head bolt with shank DIN 931, steel 8.8, hot-dip galvanised
DIN 931 steel 8.8 hot dip galvanized
BLT-HEX-DIN931-8.8-WS24-(HDG)-M16X80
Art.-no. 005981680
EAN 4053479819716
Register now and access more than 50,000 products
Manufactured in accordance with DIN 931 and monitored by the internal Würth QA laboratory. No external monitoring in accordance with the List of Specified Criteria for Buildings. Controlled construction products with CE marking in accordance with DIN EN 15048-1 can be supplied with PR01_005941040 item prefix numbers: 0059 4.. (with shank) and 0059 5.. (with thread up to head).
DIN 931 has been withdrawn and replaced by ISO 4014. There is some similarity (nominal dimensions extended | width across flats changed for M10, M12, M14 and M22).
Datasheets(X)
 | |
Thread type x nominal diameter (d1) | M16 |
Length (l1) | 80 mm |
Head height (k1) | 10 mm |
External drive (s1) | WS24 |
Standards | DIN 931 |
Material | Steel |
Property class | 8.8 |
Surface | Hot dip galvanized |
Head type | Hexagon head |
Drive type | Outer hexagon |
Thread type | Metric thread |
Thread form | Standard metric thread |
Thread design | Partial thread |
Thread length (metric thread) (b) | 38 mm |
Product class | A |
RoHS-compliant | Yes |
